A Climate-Responsive Row House with Chettinad-Inspired Interiors

This project involves the transformation of an existing west-facing row house spread across a 1000 sq.ft plot. Located within a uniform row of houses sharing an identical façade language, the scope of work included façade elevation, construction of a first floor, and complete interior design and execution. The site enjoys a favorable context, opening toward a public park at the front while a small coconut grove forms a calm natural backdrop at the rear—elements that significantly informed the design approach.

The design strategy was primarily driven by climate responsiveness and spatial comfort. Given the west-facing orientation, the western edge of the house was conceived as a sit-out zone, with the main entrance oriented toward the north. This sit-out, along with the staircase positioned at the southwestern corner, functions as a thermal buffer—shielding the interiors from the harsh western sun while creating a welcoming transition into the home. Beyond the buffer zone lies the living area, which seamlessly connects to a compact circulation space illuminated by a skylight. This naturally lit passage leads to the kids’ bedroom and guest bedroom, ensuring that even movement spaces remain bright and engaging.

Coimbatore,Tamil Nadu,India

Architects	:	Masonry of Architects
Area	:	1000 sq. ft.
Year of Completion	:	2025
Website	:	https://instagram.com/masonryofarchitects?igshid=Mzc1MmZhNjY=

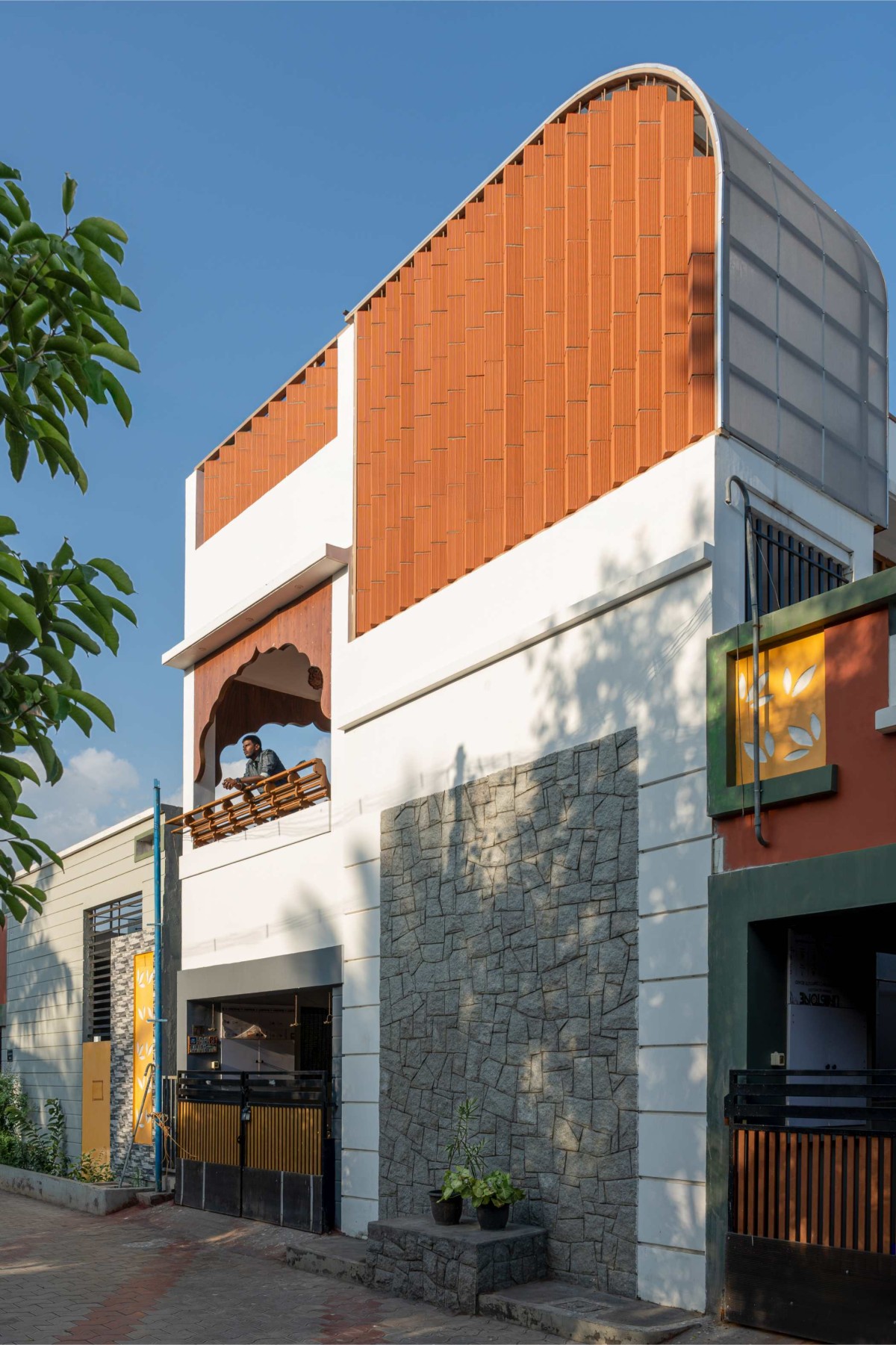

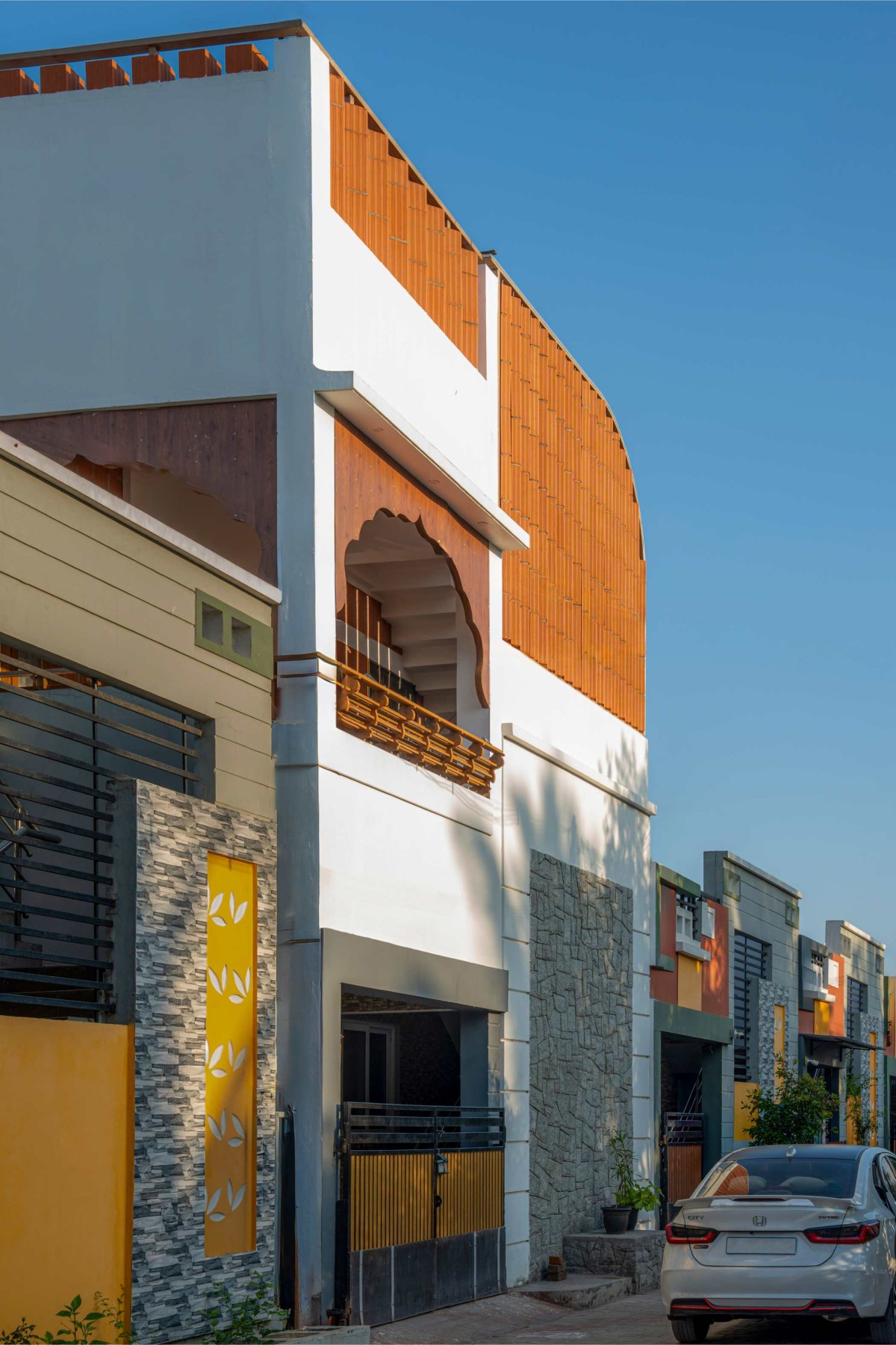

Exterior view of The Kudil by Masonry of Architects

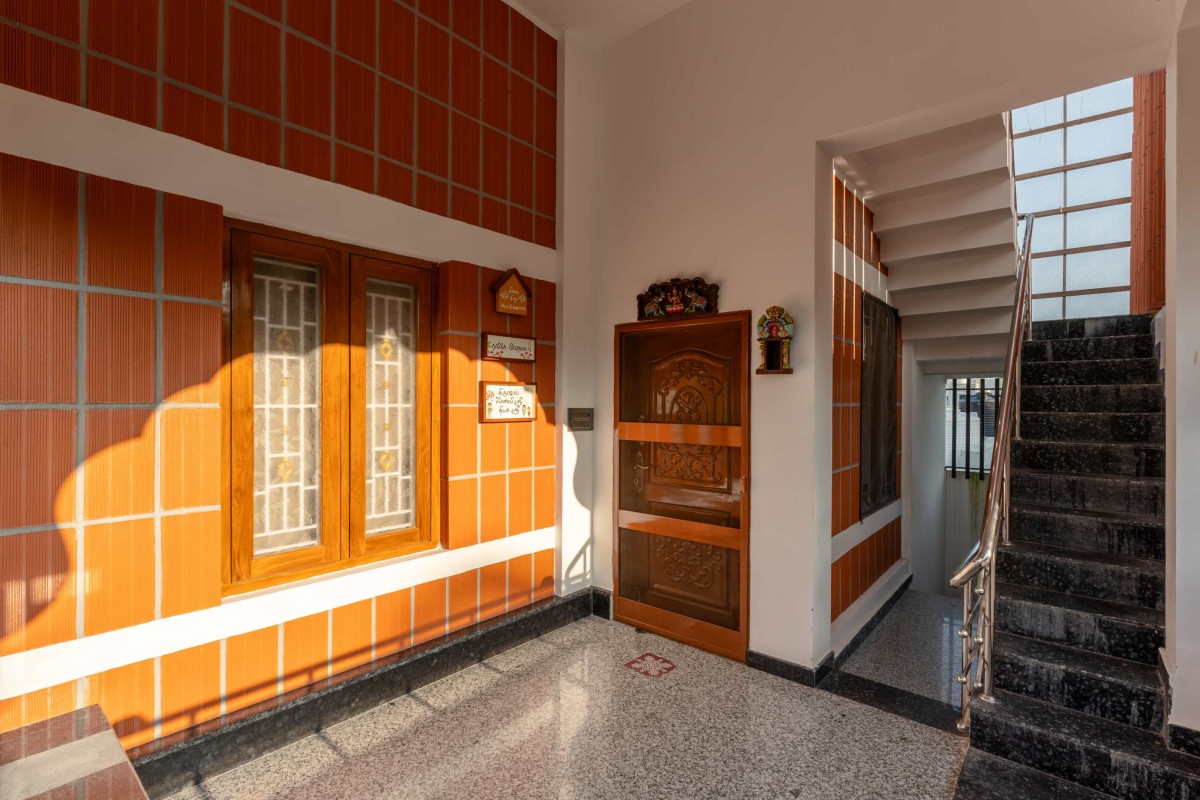

Entrance of The Kudil by Masonry of Architects

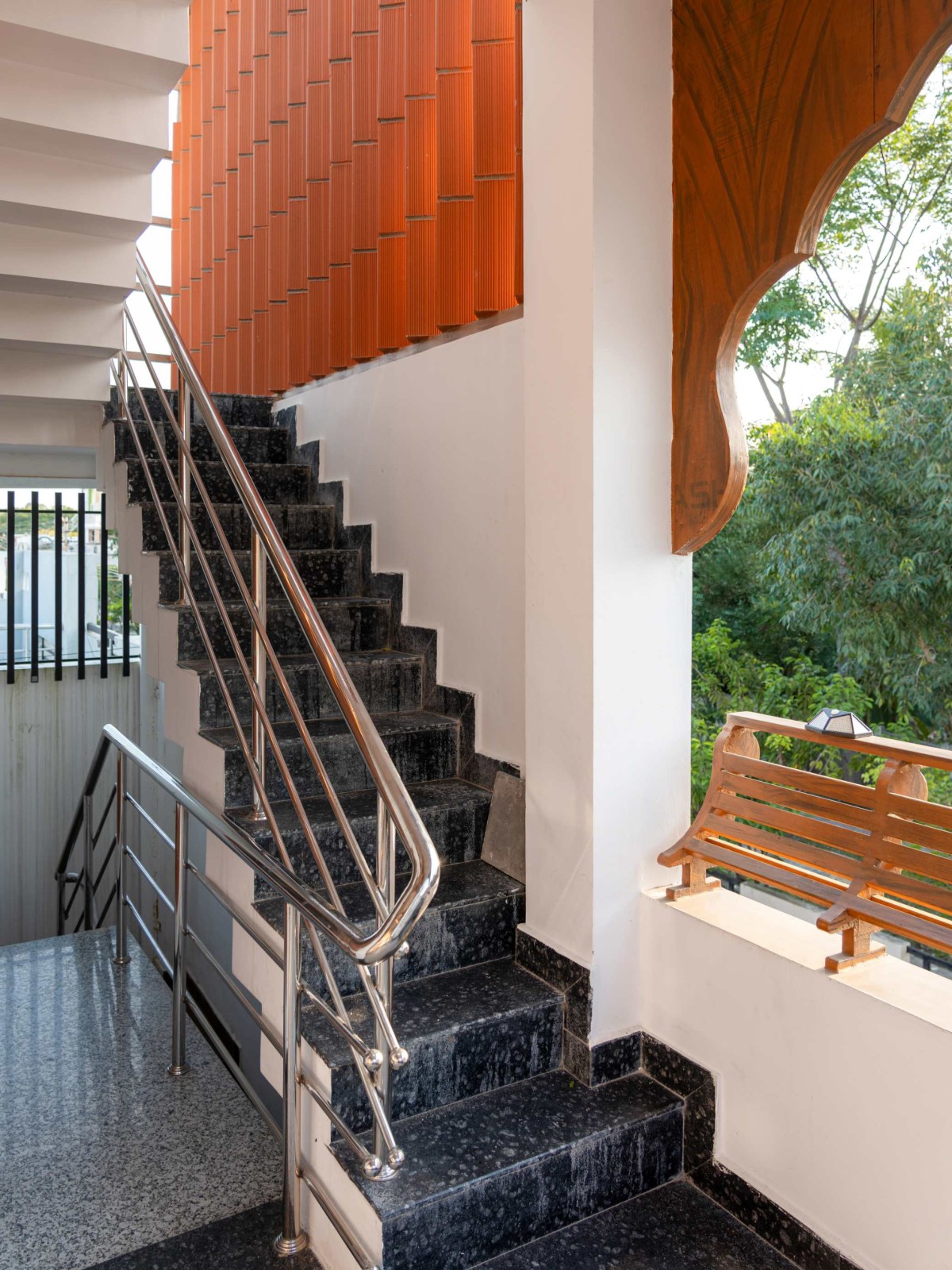

Staircase of The Kudil by Masonry of Architects

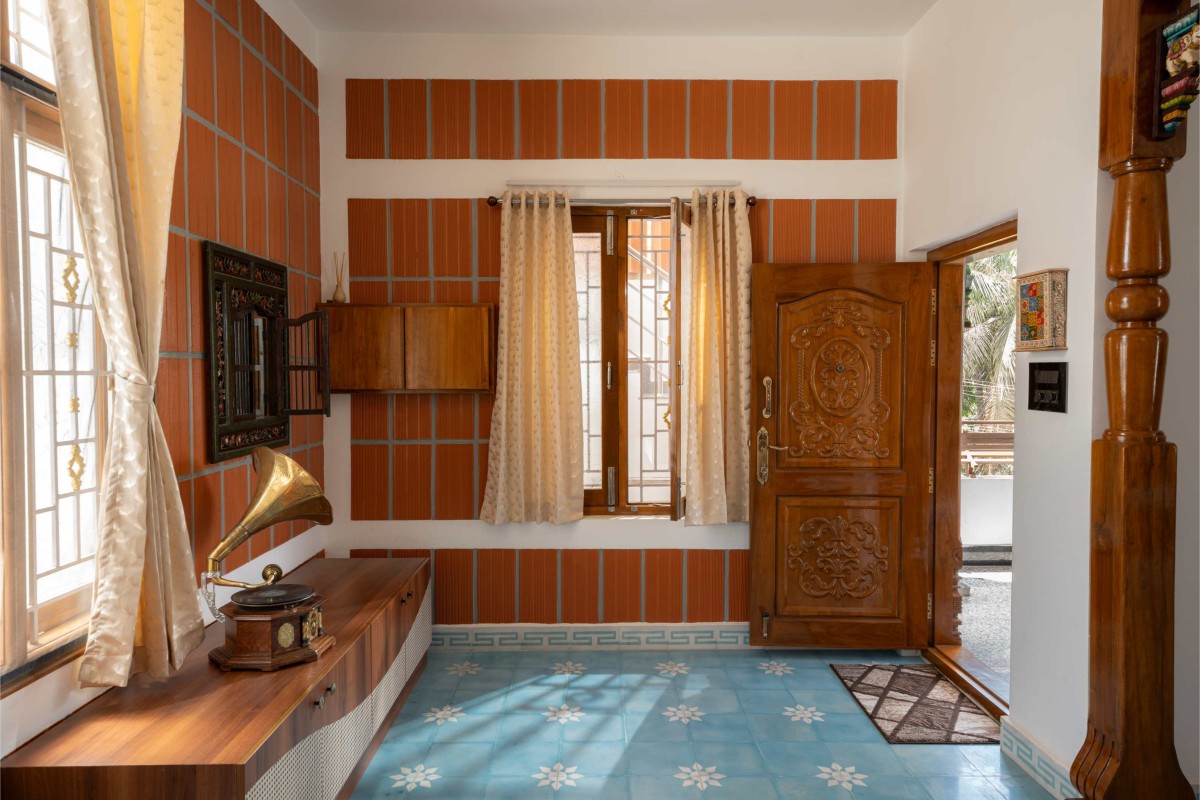

Foyer of The Kudil by Masonry of Architects

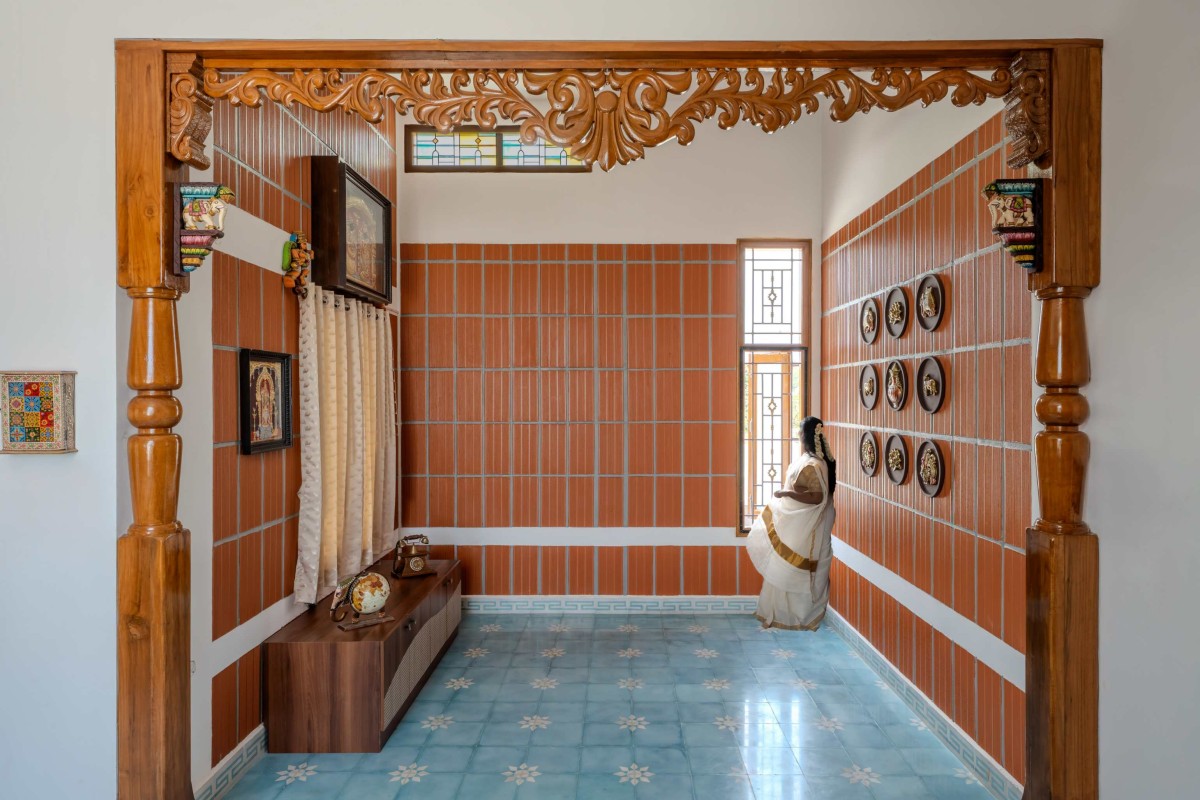

Living room of The Kudil by Masonry of Architects

The living area is carefully zoned into two distinct yet connected spaces. One zone houses the TV unit with seating, designed for everyday family gatherings. The second zone is a swing area, elevated by two feet to introduce a clerestory light effect. This subtle variation in level allows filtered daylight to wash the space, adding volume and visual interest.

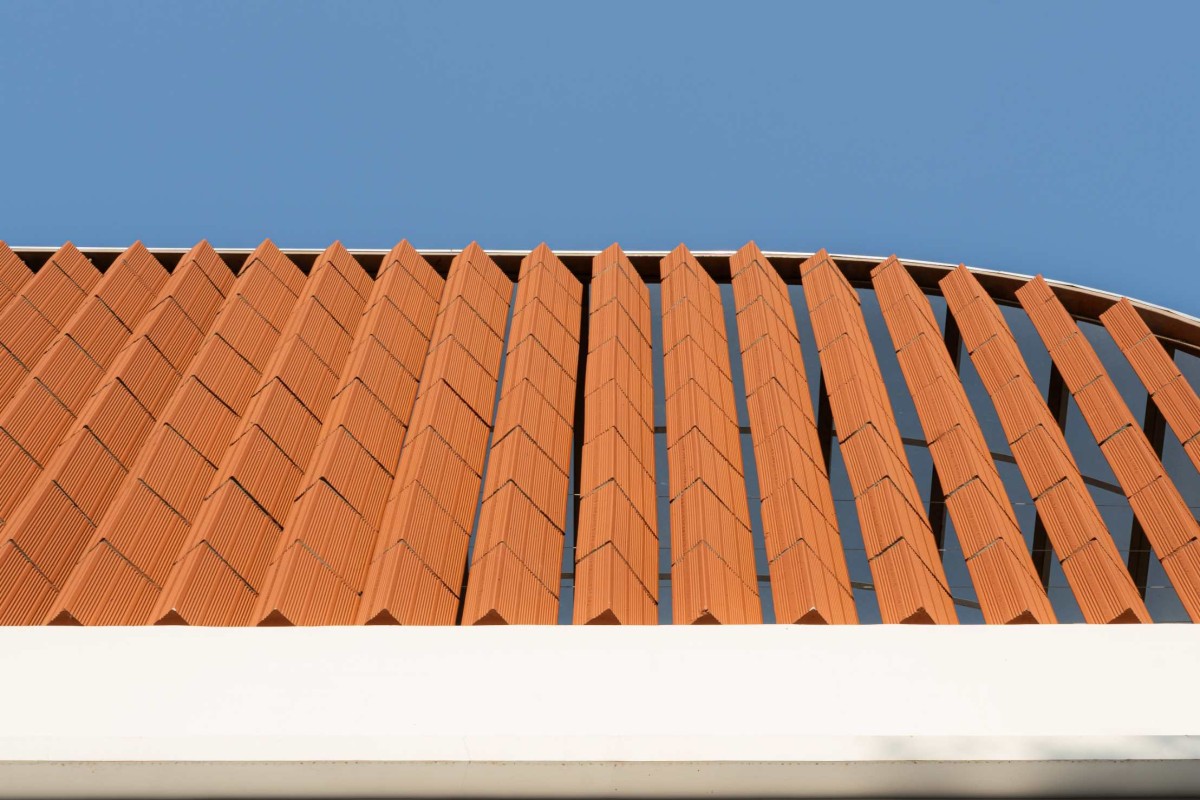

Material selection played a crucial role in achieving thermal comfort. The house is predominantly constructed using porotherm blocks, known for their insulation and energy efficiency. The southwestern façade is subtly inclined toward the northwest, enabling indirect daylight penetration while preventing direct heat gain. Traditional handmade Athangudi tiles are used for flooring throughout the house, enhancing thermal performance while adding cultural richness to the interiors.

The interiors draw inspiration from traditional Chettinad architecture, blending craftsmanship with contemporary living. Athangudi tile flooring sets the foundation, complemented by traditional columns and intricately carved beam-to-column joints. Brass and wooden décor elements further reinforce the heritage-inspired theme.

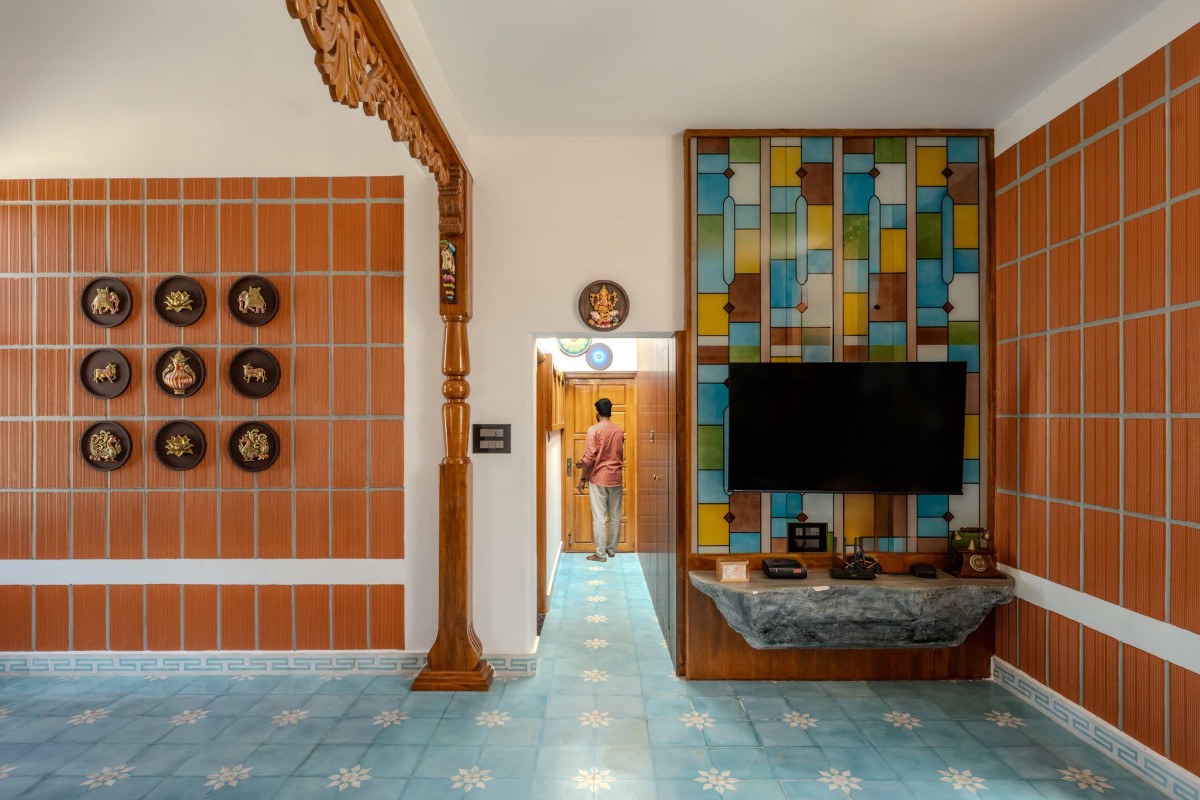

Living room of The Kudil by Masonry of Architects

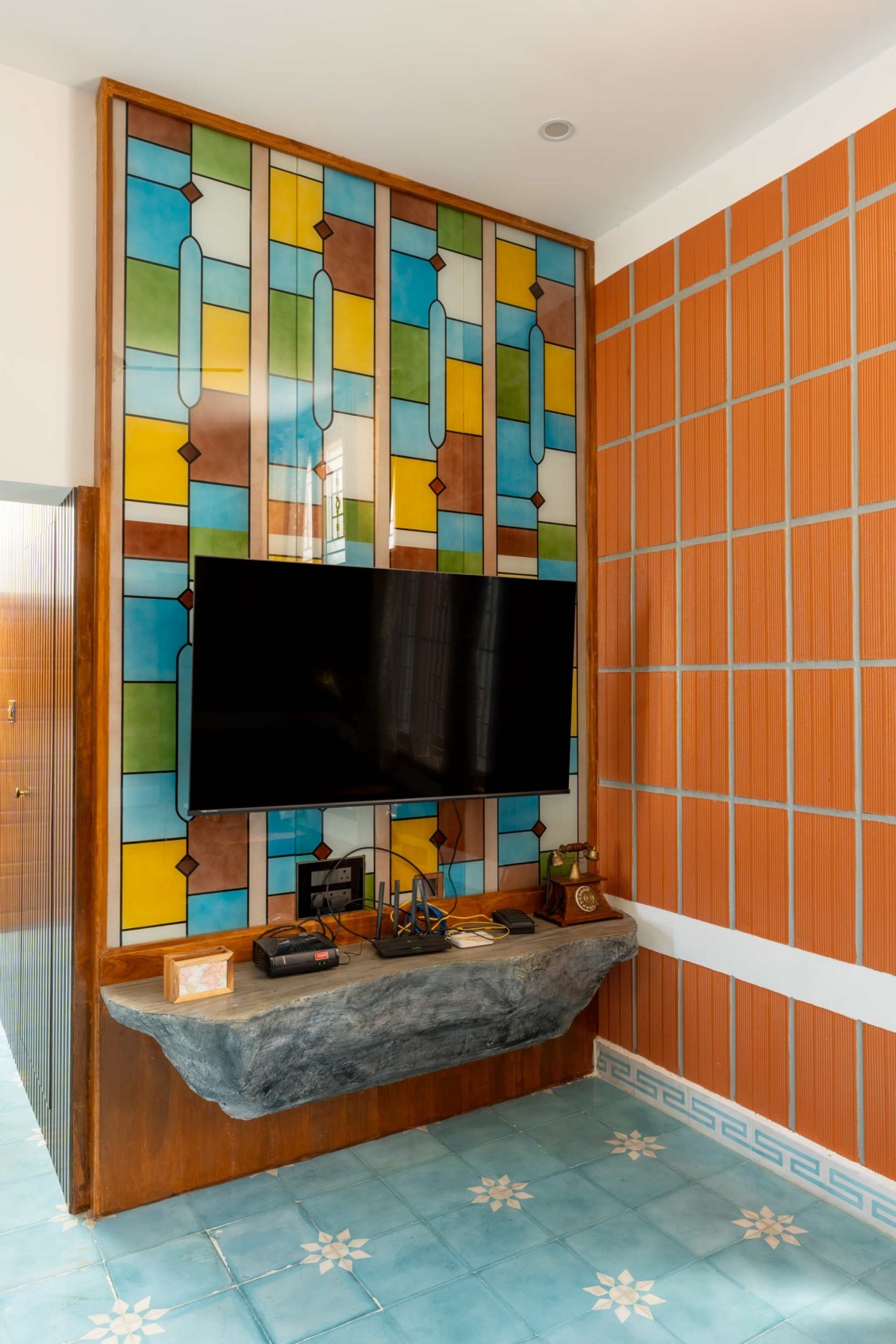

TV Unit of The Kudil by Masonry of Architects

The TV unit serves as a focal point in the living area, designed using colored glass artwork. It is paired with a uniquely crafted TV table that resembles a rock form, finished with wooden mouldings and textured paint—adding an artistic and tactile dimension to the space.

Passage of The Kudil by Masonry of Architects

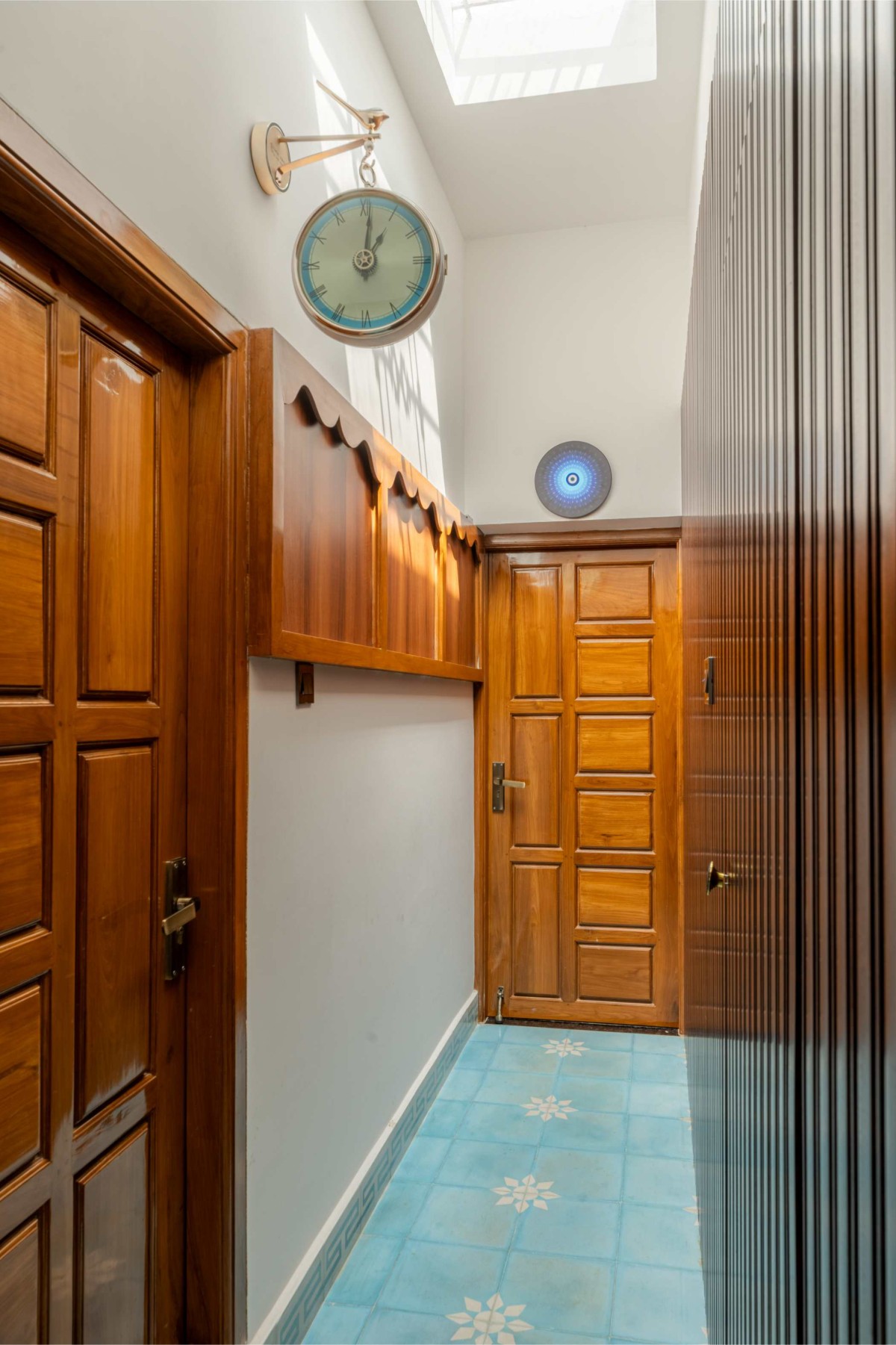

The passageway is thoughtfully treated to become more than a circulation space. One side is designed to display hanging portraits, while the opposite side incorporates fluted panels that cleverly conceal the toilet door, keeping it flush and visually seamless without disrupting the overall aesthetic.

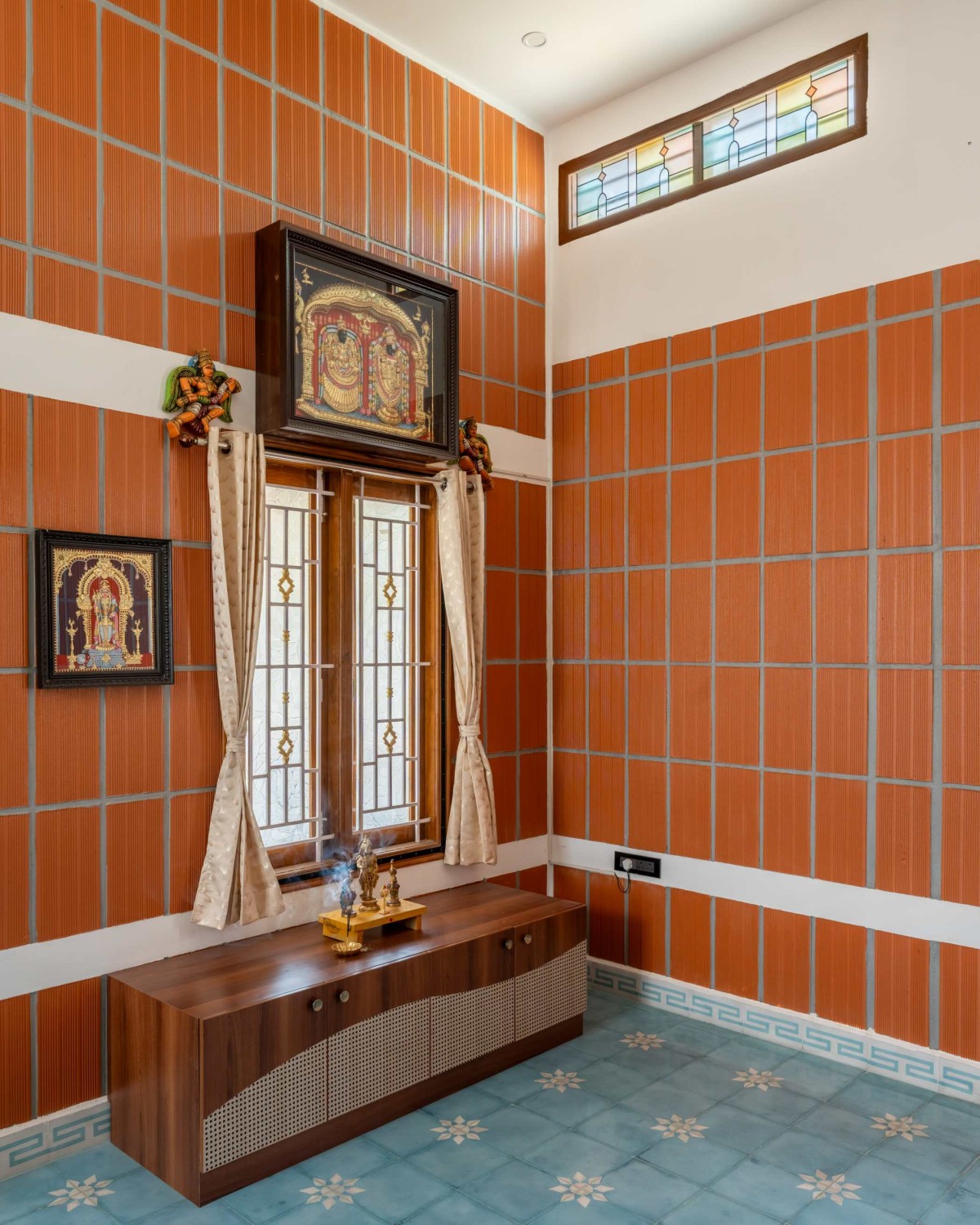

Pooja room of The Kudil by Masonry of Architects

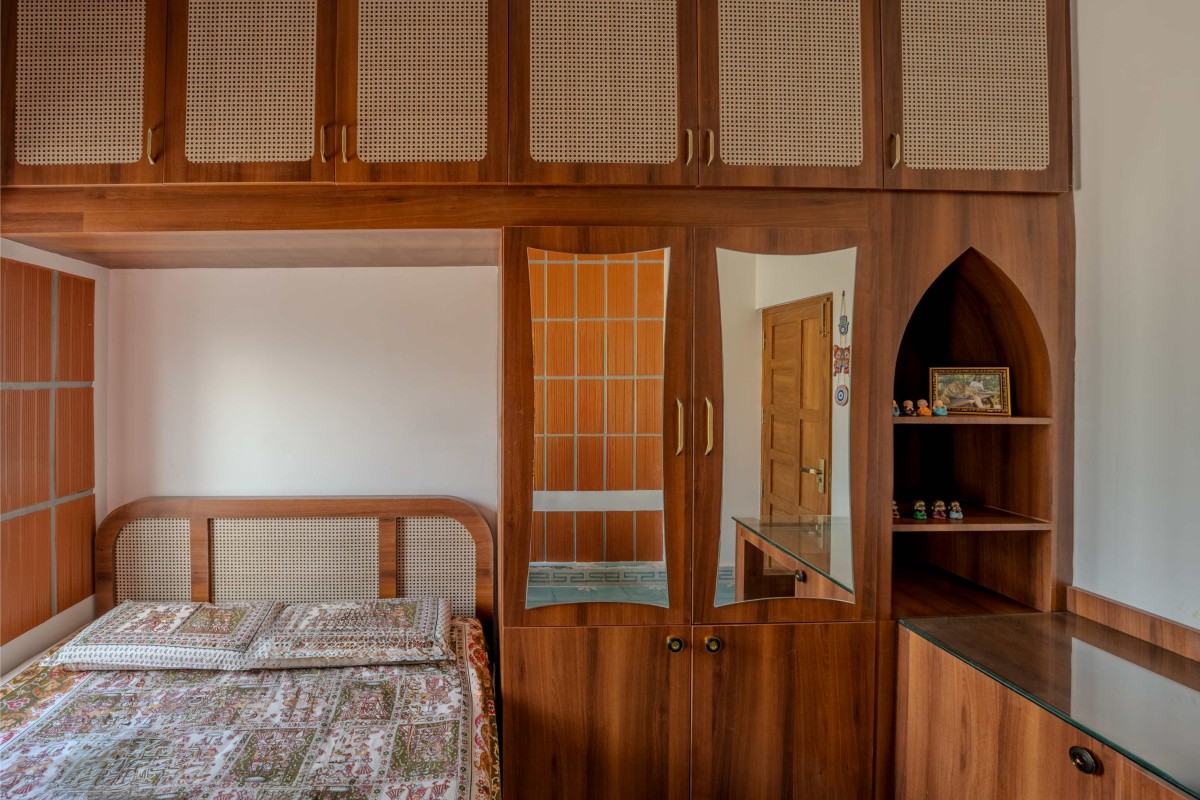

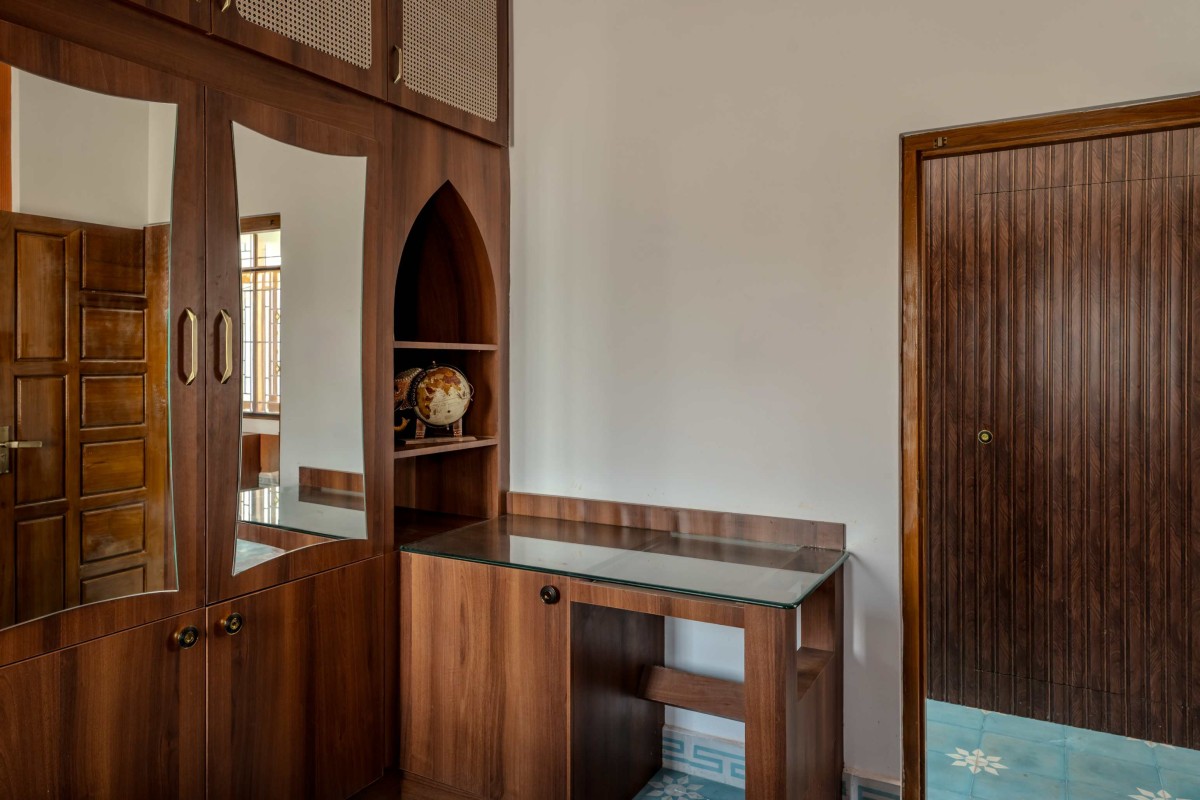

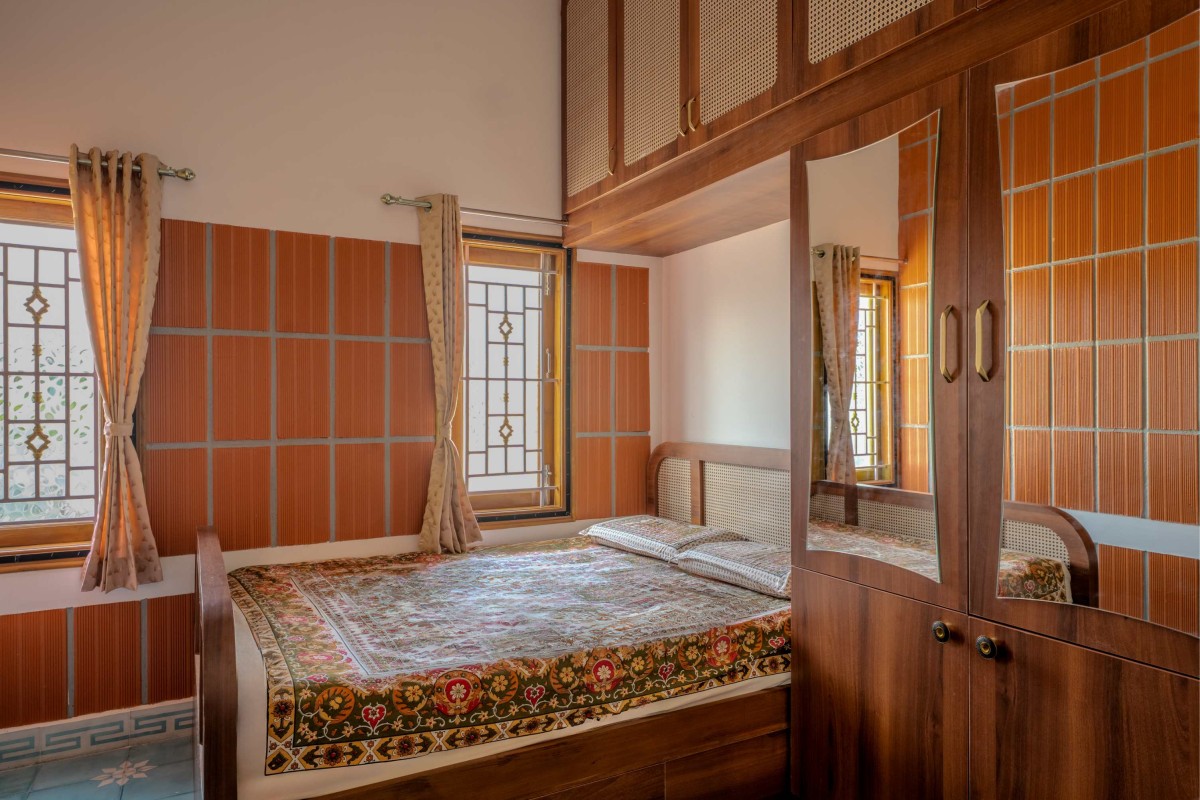

Master Bedroom of The Kudil by Masonry of Architects

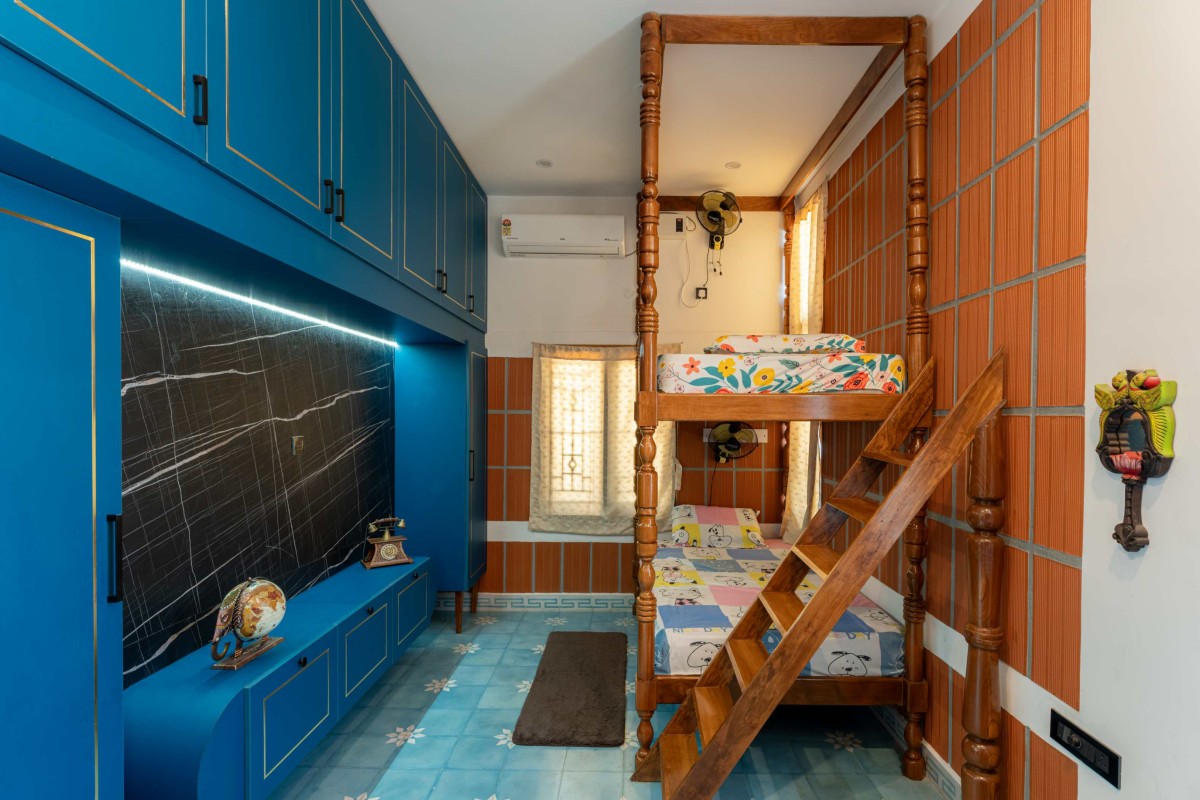

Kids Bedroom of The Kudil by Masonry of Architects

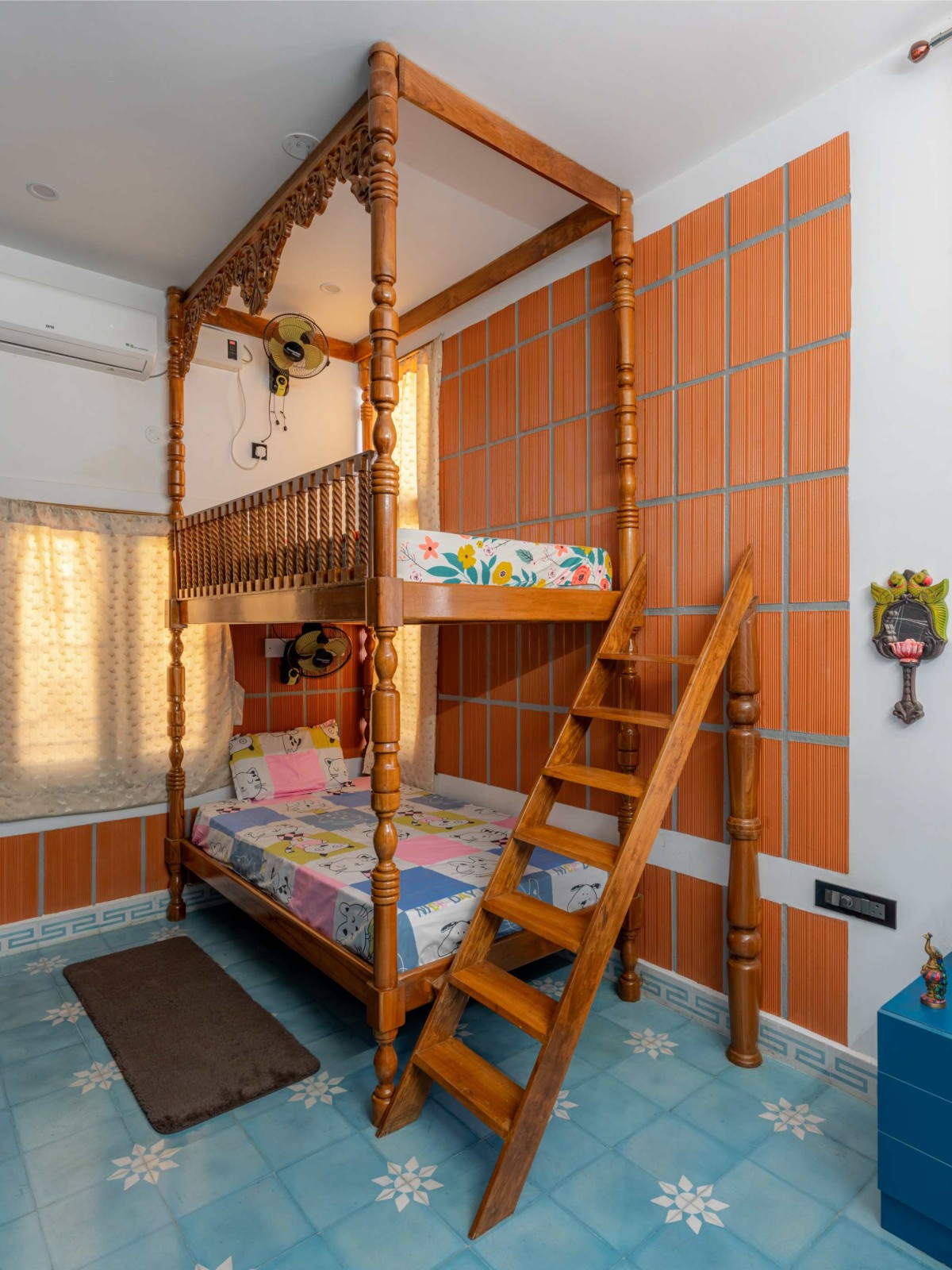

The kids’ bedroom features custom-designed bunk beds crafted in a traditional style, complete with carved wooden railings and a compact wooden staircase, making the space both functional and playful.

Kids Bedroom of The Kudil by Masonry of Architects

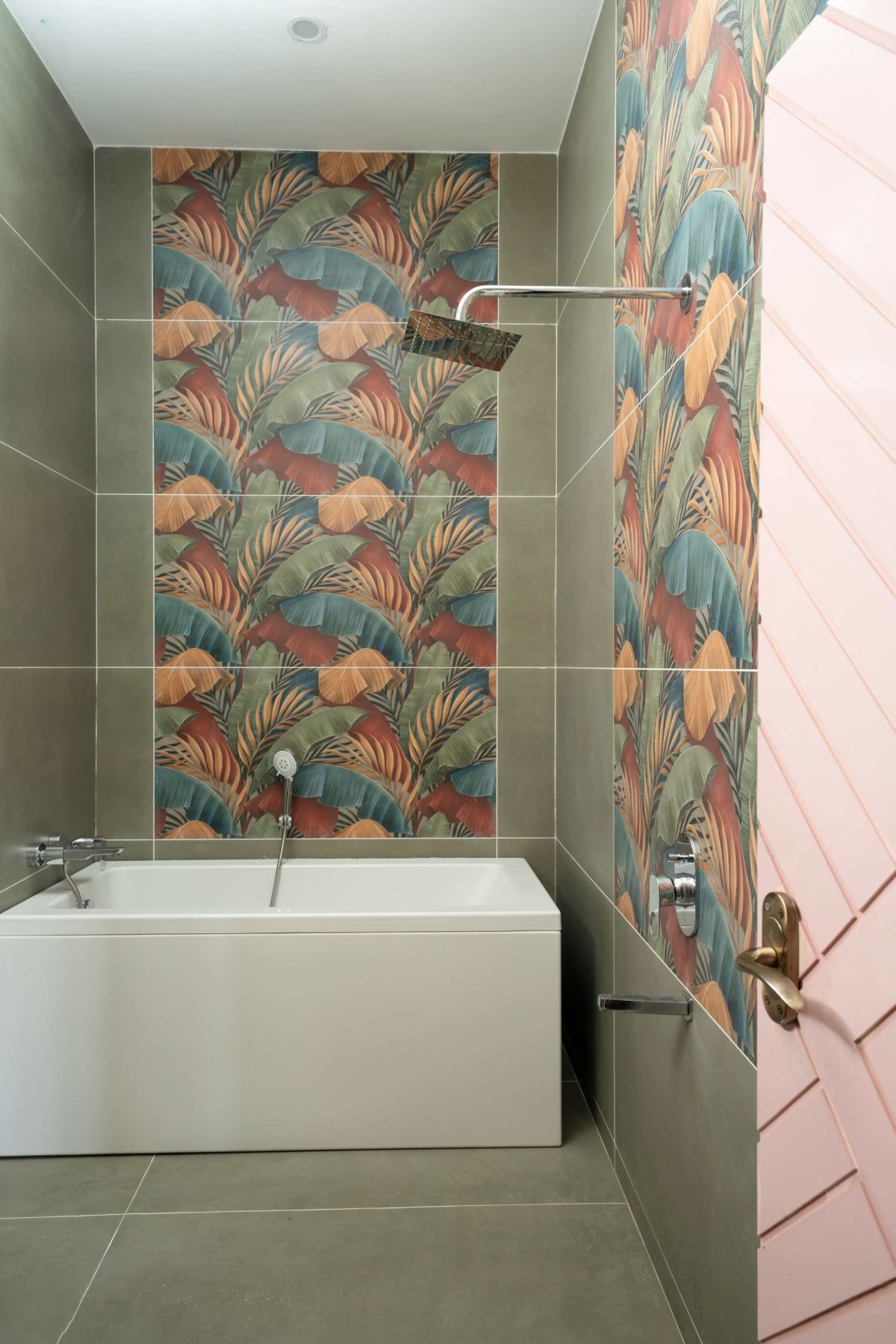

Kids Bathroom of The Kudil by Masonry of Architects

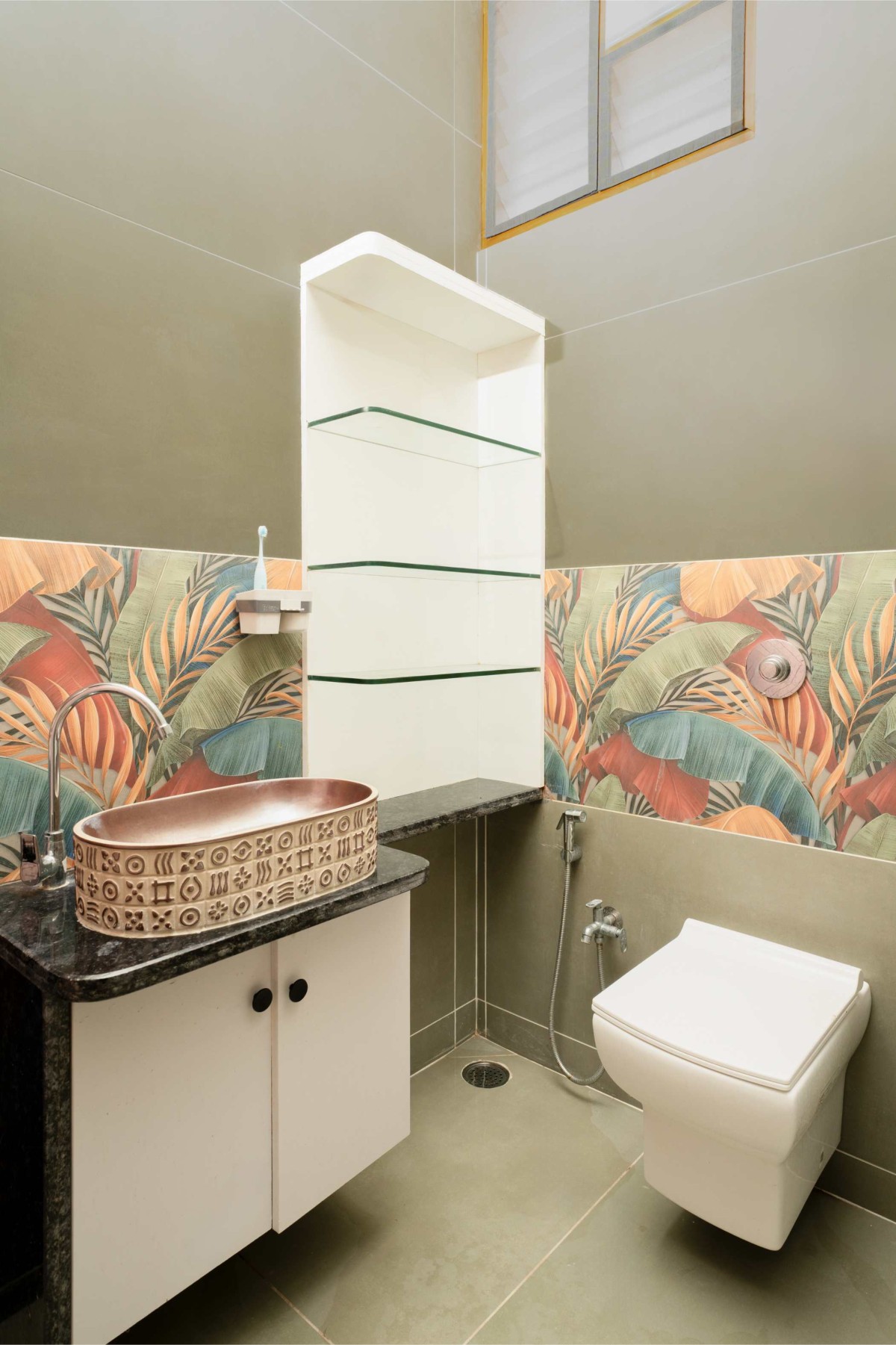

Toilet of The Kudil by Masonry of Architects

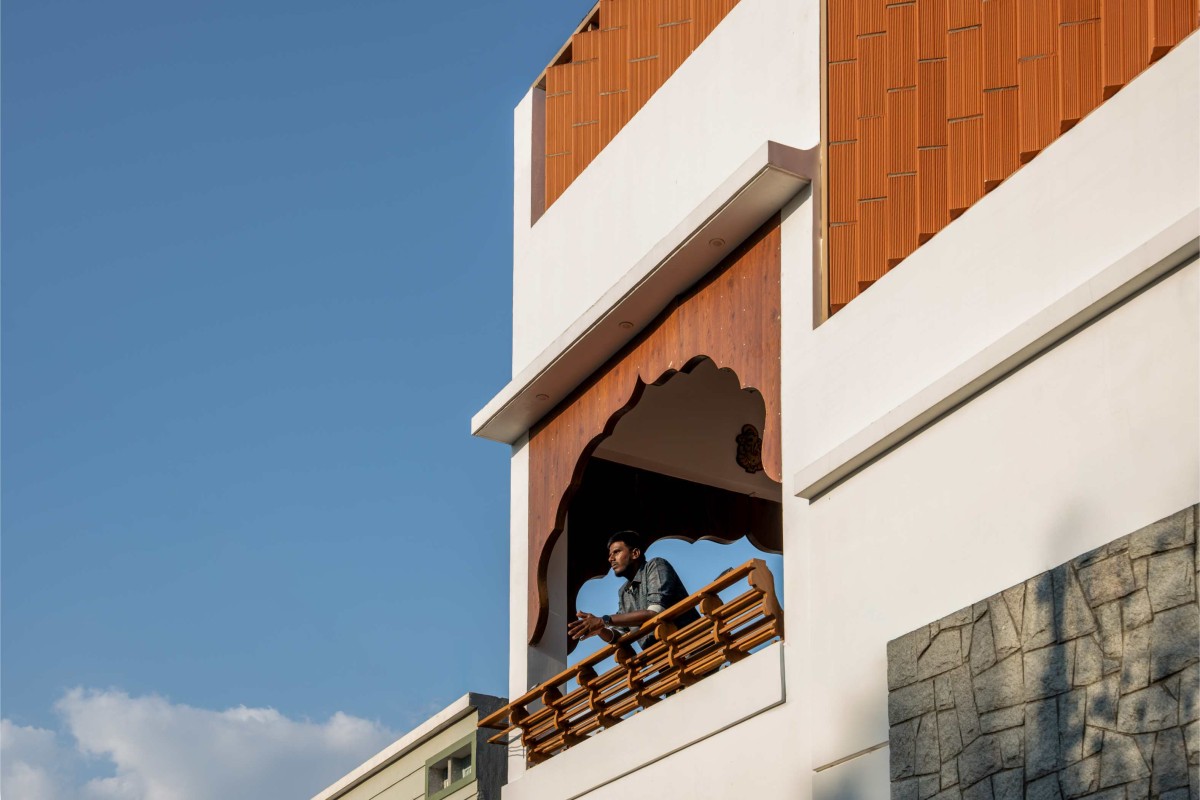

Balcony of The Kudil by Masonry of Architects

This project is a harmonious blend of climate-sensitive architecture and culturally rooted interiors. By combining traditional materials, passive design strategies, and handcrafted detailing, the house achieves a balance between comfort, sustainability, and timeless elegance—reimagining a standard row house into a warm, character-rich home.
